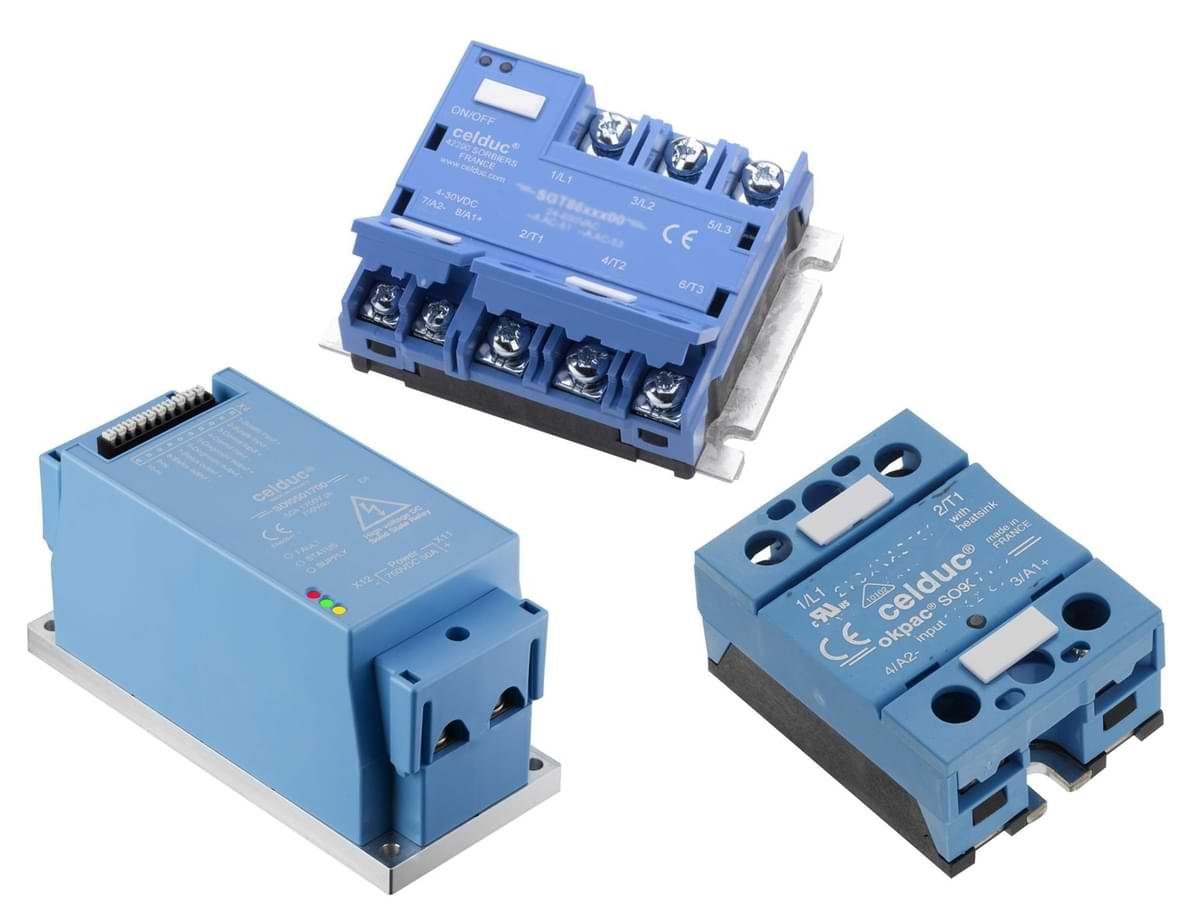

Relays have long been a vital component of electrical and electronic systems, enabling the control of high-power circuits by low-power signals. In recent decades, solid state relays (SSRs) have emerged as a modern alternative to traditional electromechanical relays (EMRs), offering a range of advantages and new possibilities. In this article, we explore the history of solid state relays, their function, benefits, and the role they play in our everyday lives.
A Brief History of Solid State Relays
The concept of a relay – an electrically operated switch – dates back to the early 19th century. The first electromagnetic relay was invented by Joseph Henry around 1835 and soon became integral to telegraphy and other early electrical systems.
For over a century, relays were mechanical devices: they relied on coils and moving contacts to open or close circuits. These electromechanical relays were robust but had inherent limitations, including wear and tear from physical movement, arcing at the contacts, and slower response times.
With the advent of semiconductor technology in the mid-20th century, engineers began developing alternatives that eliminated moving parts. The first solid state switching devices – using thyristors, triacs, and transistors – appeared in the 1950s and 1960s. By the 1970s, dedicated solid state relay products were commercially available, offering engineers a reliable, fast, and maintenance-free switching solution.
What Does a Solid State Relay Do?
Like its mechanical predecessor, a solid state relay is designed to switch a circuit on or off. However, instead of using magnetic coils and physical contacts, an SSR uses semiconductor components to perform the switching electronically.
Typically, a solid state relay consists of:
- An input circuit, which receives a low-power control signal (such as from a microcontroller or PLC).
- An isolation stage, often achieved with an optocoupler, to protect the control side from the load side.
- An output circuit, where semiconductor devices such as triacs or MOSFETs switch the high-voltage or high-current load.
When a control signal is applied to the SSR, it triggers the semiconductor switching device to conduct, allowing current to flow in the load circuit.
Advantages of Solid State Relays
Solid state relays have several advantages over traditional electromechanical relays:
No Moving Parts
With no mechanical contacts, SSRs are immune to wear and tear, resulting in a longer service life and higher reliability.
Silent Operation
Mechanical relays make a distinctive clicking sound when they operate. SSRs, by contrast, switch silently, which is advantageous in noise-sensitive environments.
Fast Switching
SSRs can switch much faster than mechanical relays – within microseconds – making them suitable for high-frequency or precise timing applications.
Resistant to Shock and Vibration
Because they have no moving components, SSRs are more resistant to mechanical shock, vibration, and environmental contaminants such as dust and moisture.
No Contact Arcing
Arcing and sparking, common in EMRs, are eliminated in SSRs. This makes them safer and more suitable for use in hazardous or explosive environments.
However, SSRs are not without drawbacks – they can generate more heat, have higher on-state voltage drops, and sometimes cost more than their mechanical counterparts. Nonetheless, their advantages often outweigh these concerns in many applications.
Applications of Solid State Relays in Everyday Life
Today, solid state relays are used in a wide range of industries and applications – many of which touch our daily lives in ways we may not notice.
Industrial Automation
In manufacturing, programmable logic controllers (PLCs), robotics, and process control systems widely use SSRs to switch heaters, motors, solenoids, and lights reliably and quickly.
Heating, Ventilation, and Air Conditioning (HVAC)
SSRs control heating elements in ovens, industrial dryers, and HVAC systems with precise temperature regulation and quiet operation.
Home Appliances
From microwave ovens to washing machines and coffee makers, SSRs enable silent and efficient switching of heating and motor circuits in domestic appliances.
Medical Equipment
In hospitals and laboratories, SSRs help maintain sterile, precise, and quiet environments in devices such as incubators and diagnostic machines.
Renewable Energy
SSRs play a role in managing power in solar inverters and wind turbines, helping to ensure safe and efficient operation of renewable energy systems.
Entertainment and Lighting
Stage lighting, LED installations, and other event technology use SSRs for dimming and switching without audible noise.
The Impact of Solid State Relays on Modern Life
Solid state relays have quietly transformed the way electrical systems control operations. They have enabled more compact, reliable, and maintenance-free equipment across industries, improving energy efficiency and reducing downtime. From the appliances in our kitchens to the machines in factories and the infrastructure that powers our cities, SSRs contribute to the smooth and silent functioning of countless systems.
Next time you enjoy the quiet efficiency of a modern appliance or appreciate the reliability of industrial automation, there is a good chance that a solid state relay is working behind the scenes.
Conclusion
Solid state relays are a prime example of how advances in semiconductor technology have revolutionised everyday components. With their long life, fast operation, and silent performance, SSRs continue to replace mechanical relays in many settings – and their role is only likely to grow as demand for reliability and efficiency increases.
Whether in industrial plants, renewable energy systems, or the appliances we use daily, solid state relays are an essential, though often invisible, part of modern life.
